E96L24DC-KO

ETL IK00

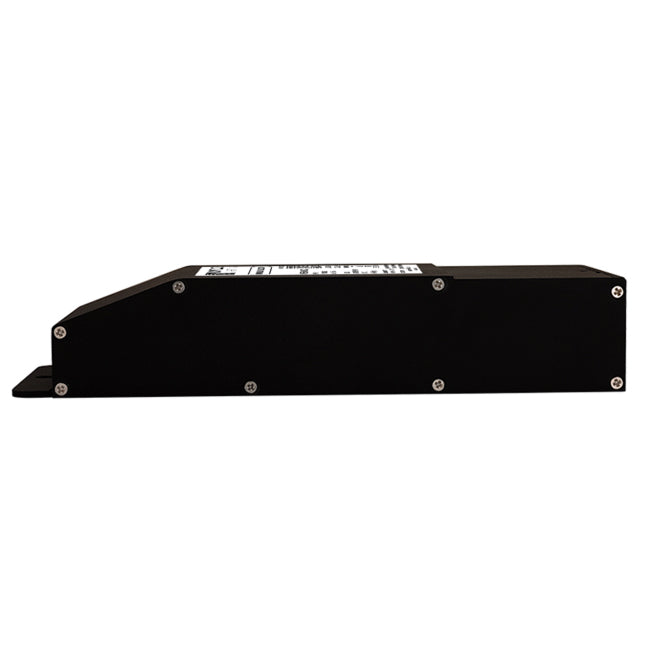

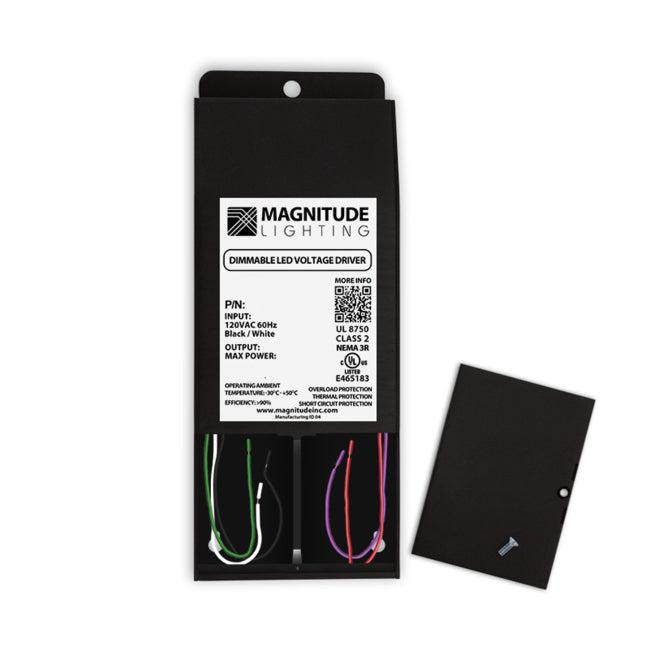

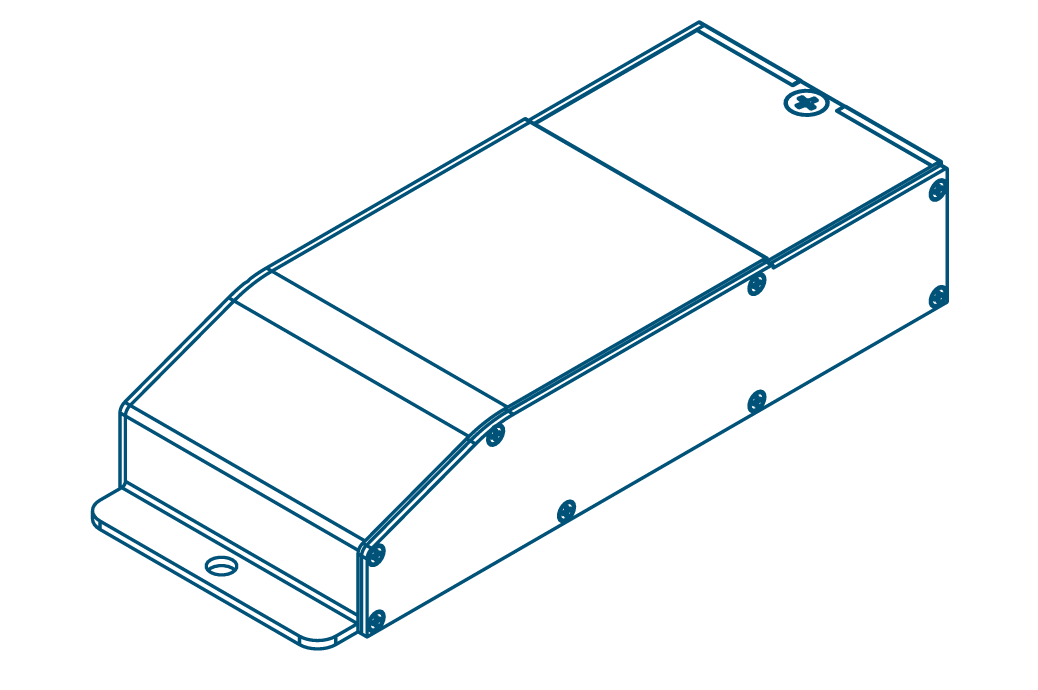

Magnitude’s E96L24DC-KO dimmable voltage LED driver is class 2 rated and designed to operate with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch. Encased in a low profile aluminum enclosure that includes 2 knock-outs to enable easy installation makes it the perfect choice for under cabinet lights, tape lights and various LED fixture installations. Our electrical specification includes Auto Reset, over current and short circuit protection. Efficiency of 90% and higher allows the driver to operate at low temperatures.



Class 2 electronic dimming
Connect a compatible TRIAC dimmer and dim up to 96W of 24VDC LED product down to 1%
Low profile
Super compact aluminum enclosure for easy placement
Ready for the elements
Nema 3R enclosure for outdoor use
Resources
SPECIFICATION SHEET (PDF)
E96L24DC-KO
INSTALLATION GUIDE (PDF)
E-Series-24VDC-Listed-Install-Guide-REV002
COMPATIBLE DIMMER LIST (PDF)
Dimmer_Compatibility_List
