Terra Drum

Lumens: 3,480
Power: 60W; 30W; 15W
TM-30: 90

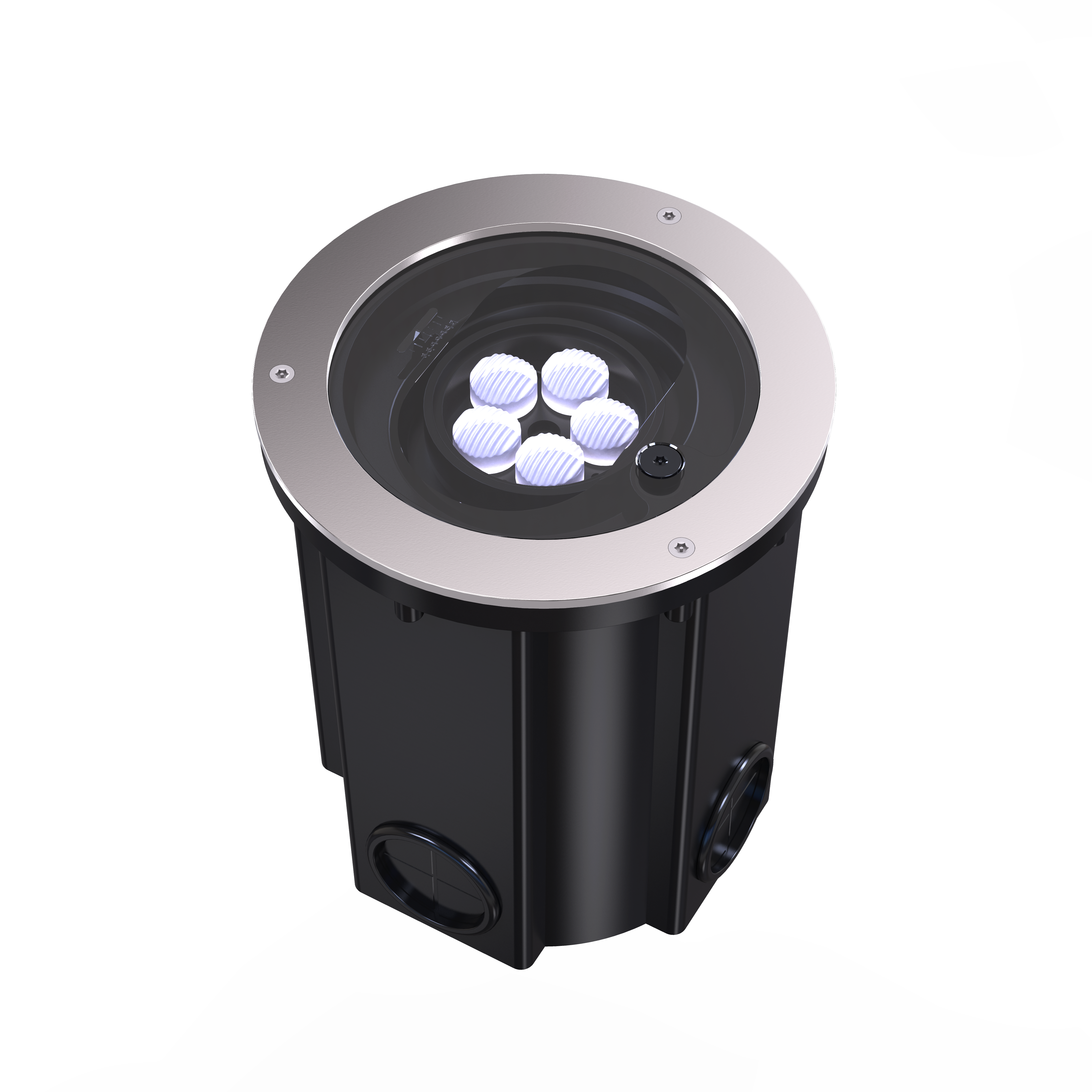

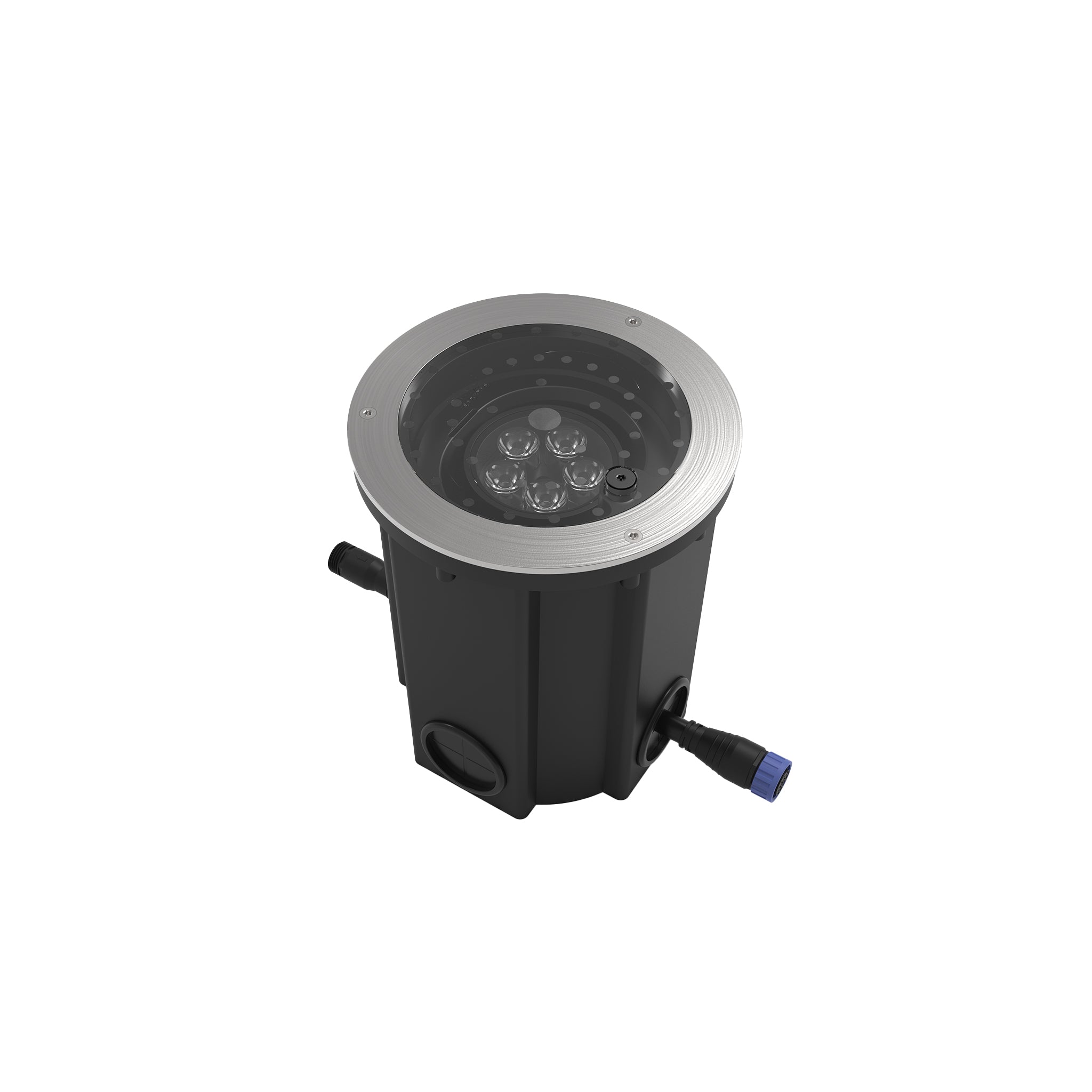

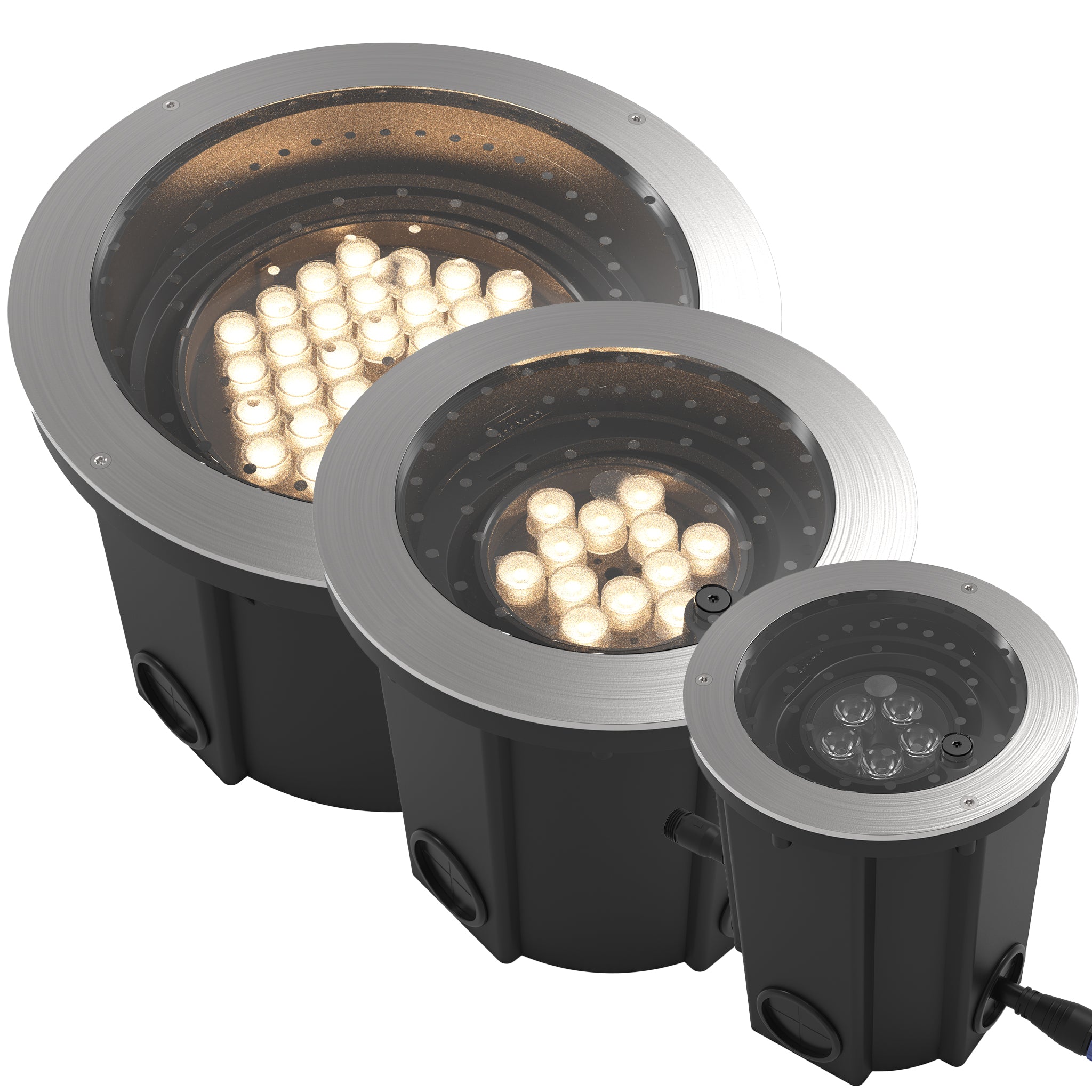

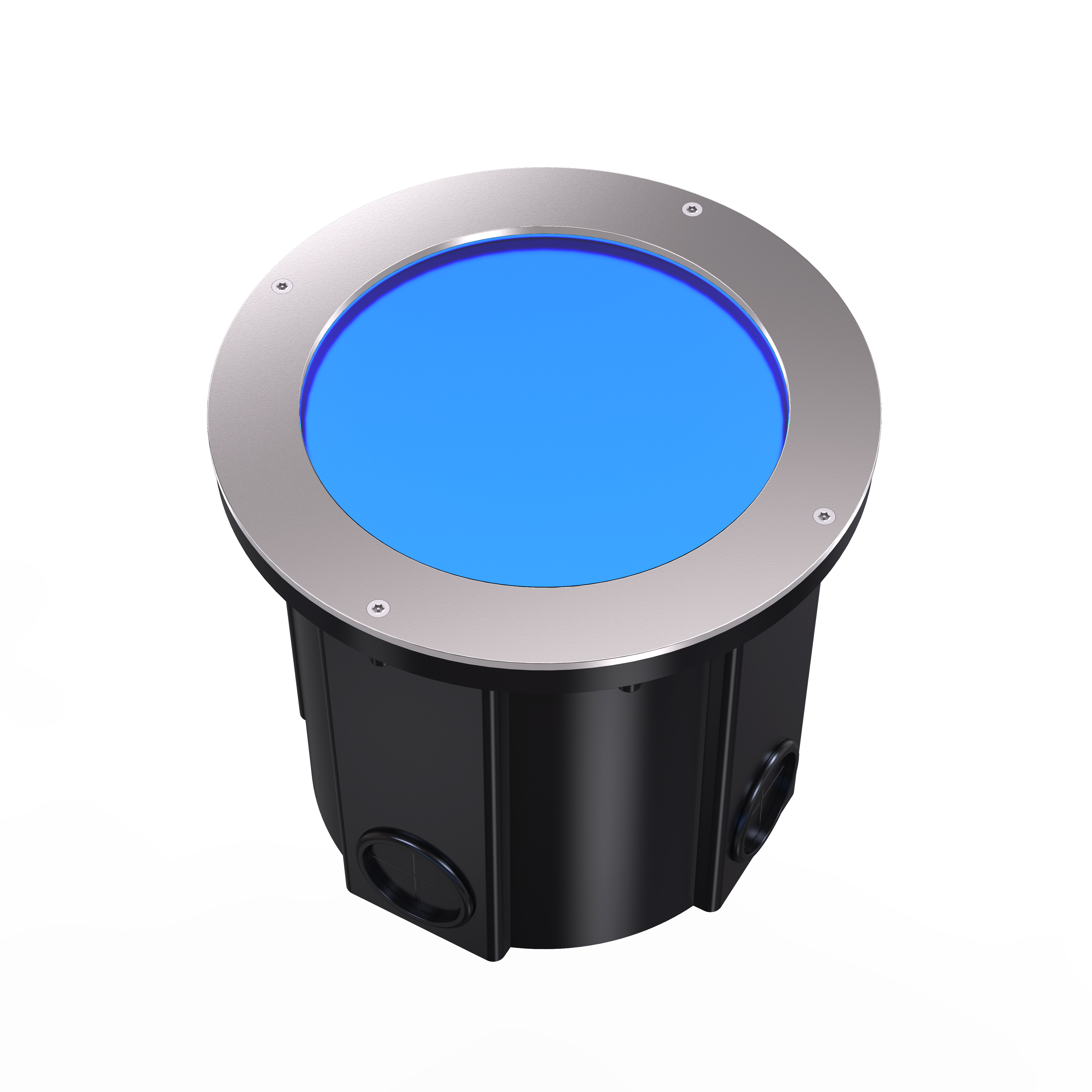

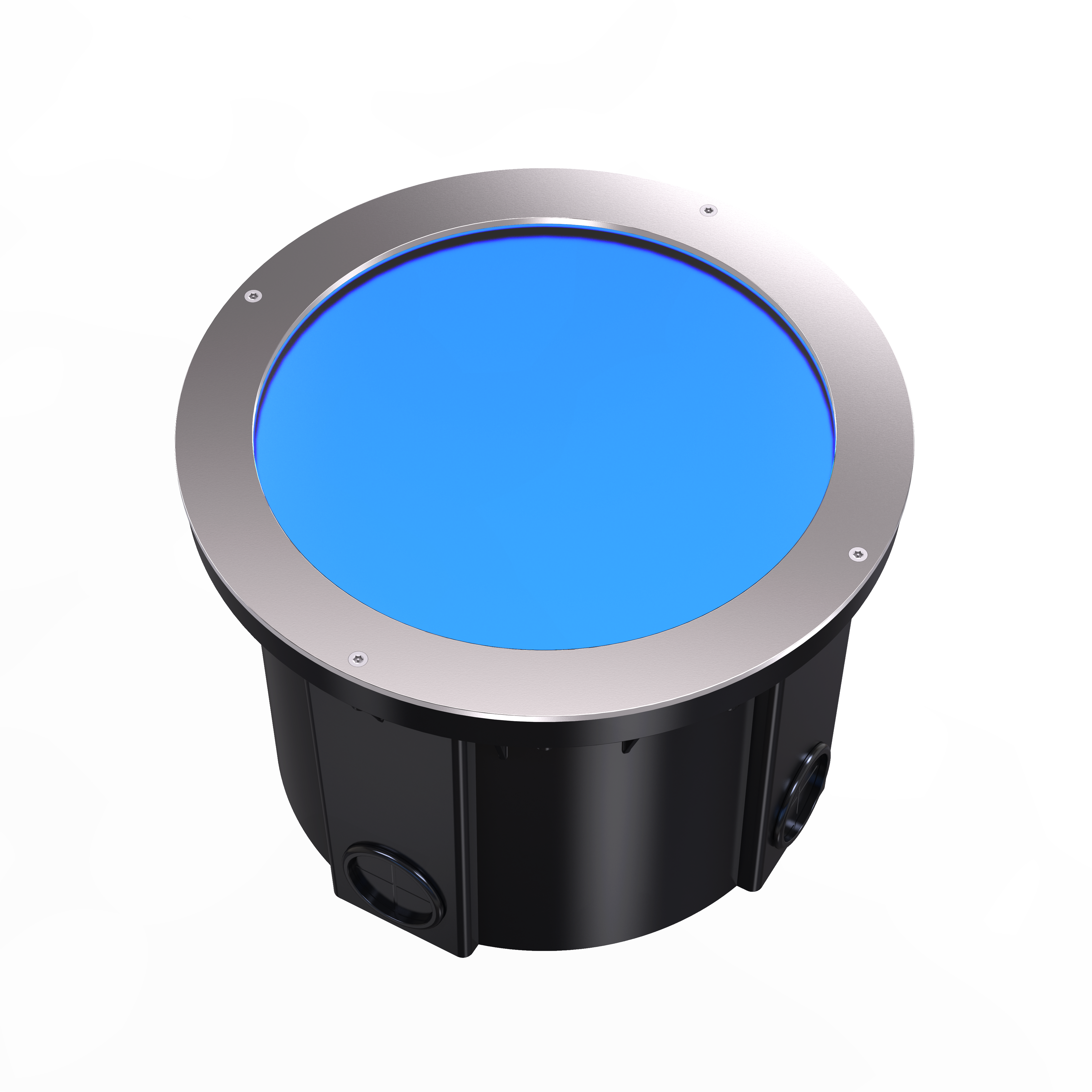

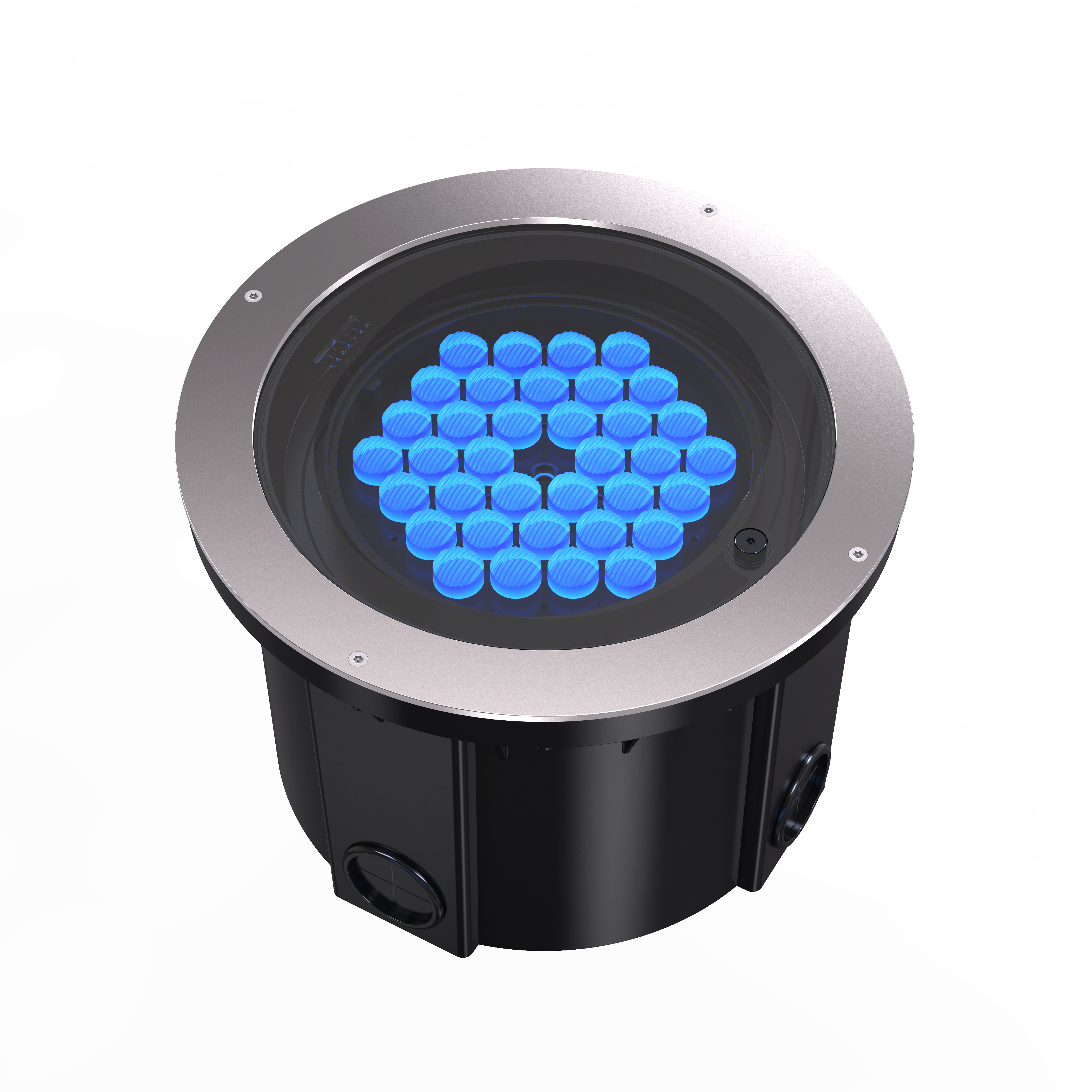

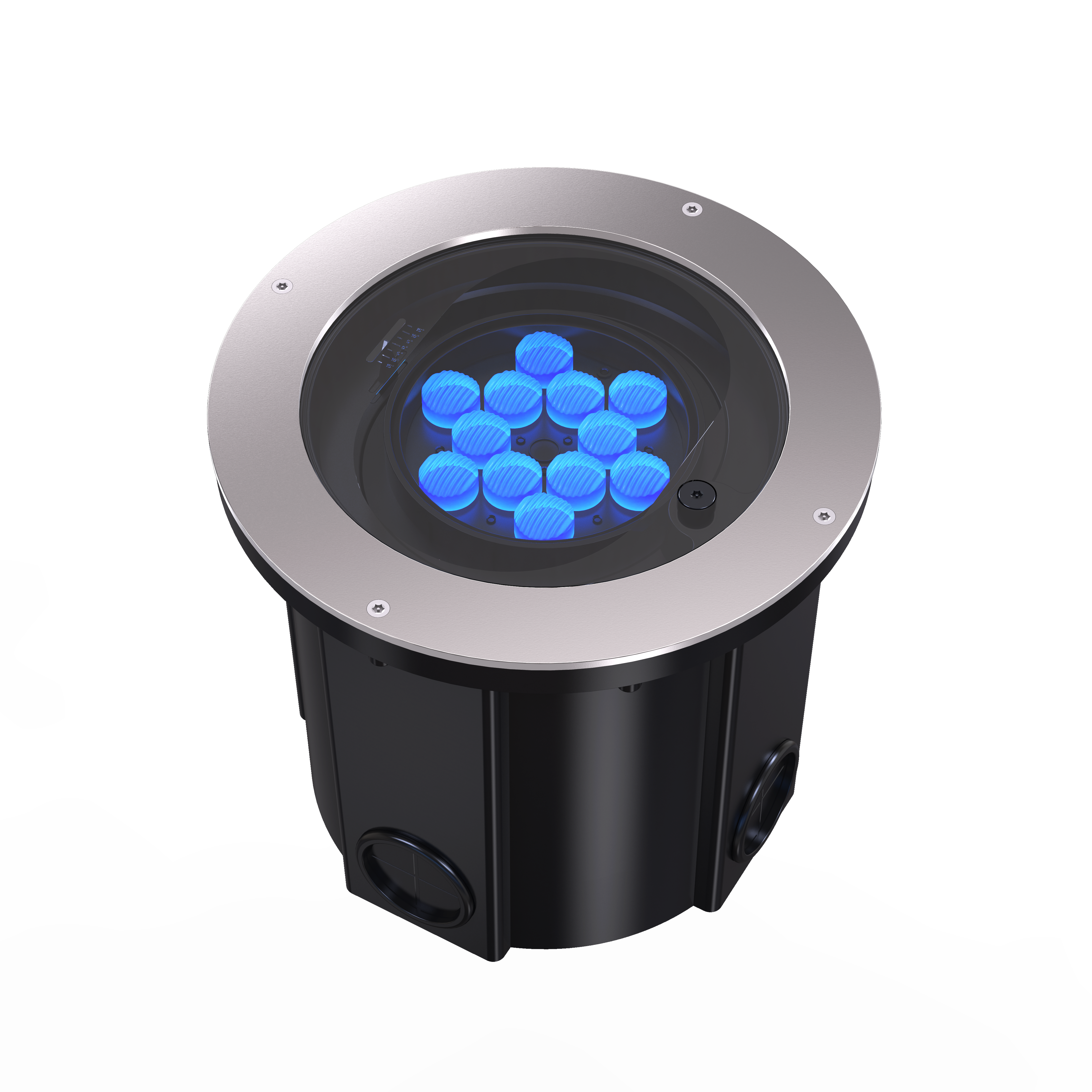

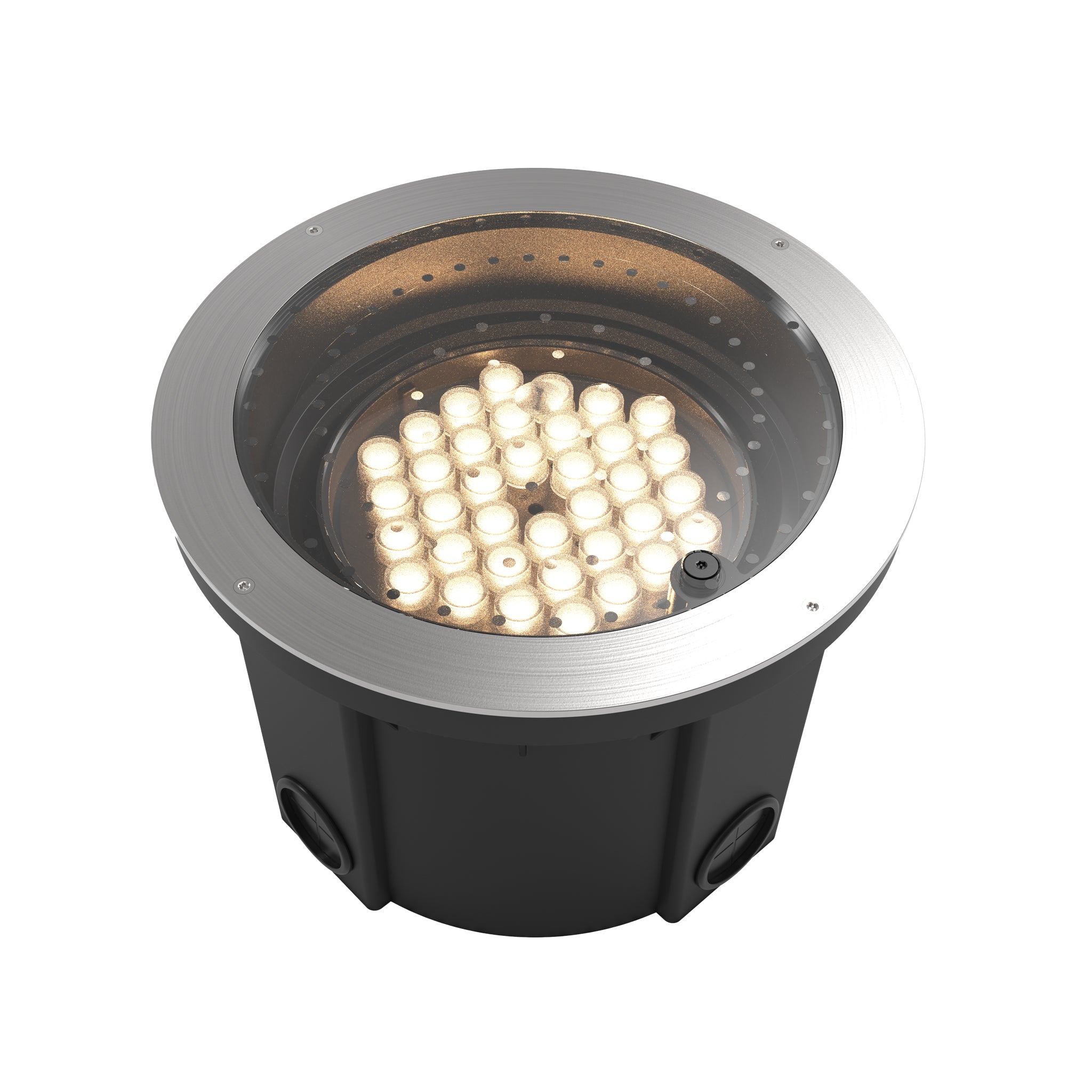

The Terra Drum series are rugged, drive-over-ready fixtures designed for all-weather in-ground applications. Available in three sizes, these IP68-rated fixtures are particularly suited to recessed facade and tree lighting applications. The wide range of emitter and optic options amount to an impressive ninety combinations to ensure a precise fit with your installation.

Additionally, our Terra-Tilt adjuster allows you to fine-tune the beam position once each fixture is in place, without compromising the environmental protection.

Using unified power and DMX control links, Terra Drum fixtures can be rapidly daisy-chained in long runs. Configuration is achieved using RDM (via DMX), and all standard mains voltages are supported. Anti-slip top coating options, anti-theft security screws, and an IK10 drive-over rating of up to 6,000 lbs (2,721kg) make the Terra Drum family a natural choice for use in all public areas.

SKU: TD#-2##-A##N-1

Featured Technologies

01

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

01

Spectrum Four

Why choose between color and white when you can have both perfected? Spectrum Four's revolutionary quad-die architecture blends dedicated 3000K white with calibrated blue to deliver any white temperature from warm residential to cool commercial (3000K-7000K), all while maintaining >80 CRI. Switch seamlessly to saturated colors, clean white CCTs or delicate pastels, all from a single, intelligent light source.

Downloads

Filename	Document type	File type
Terra Drum Specification Sheet - July 2025	Specification Sheet	PDF
Terra Drum User Guide v3-0a	User Guide	PDF
Terra Drum Revit Files	Revit Files	RFA
Terra Drum IES Feb 2024	IES Files	ZIP
Terra Drum 2D Drawings	Drawings	ZIP
