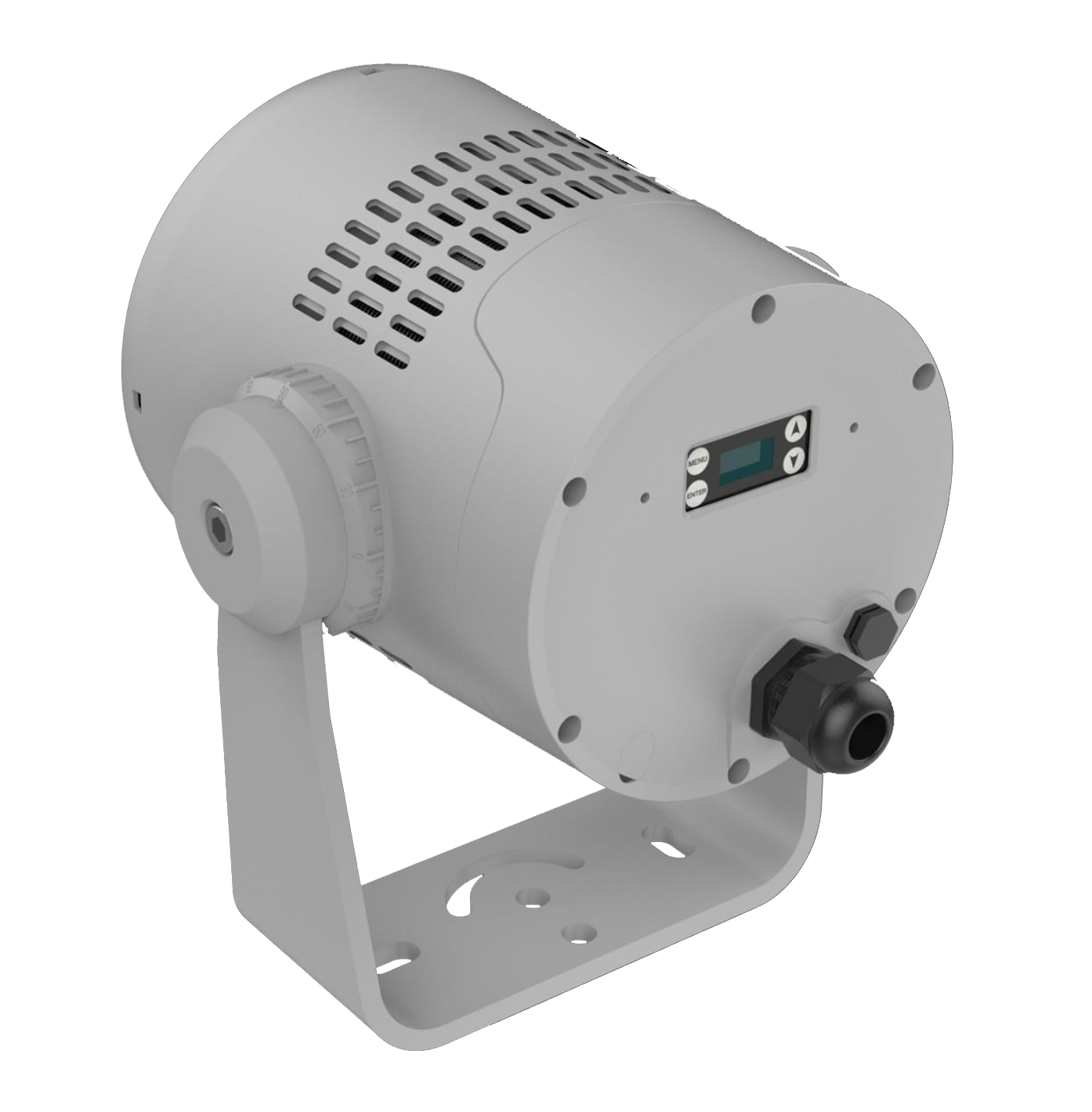

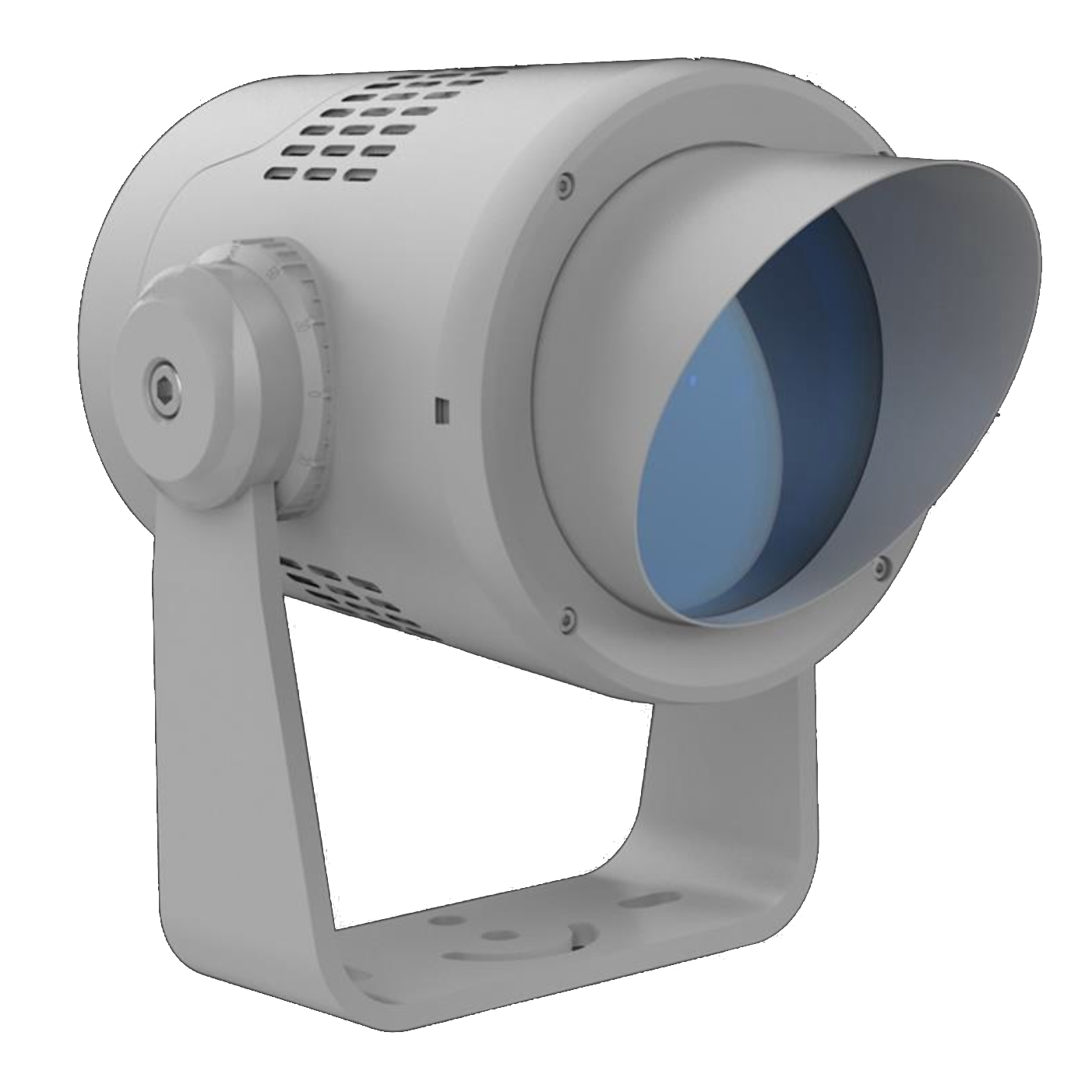

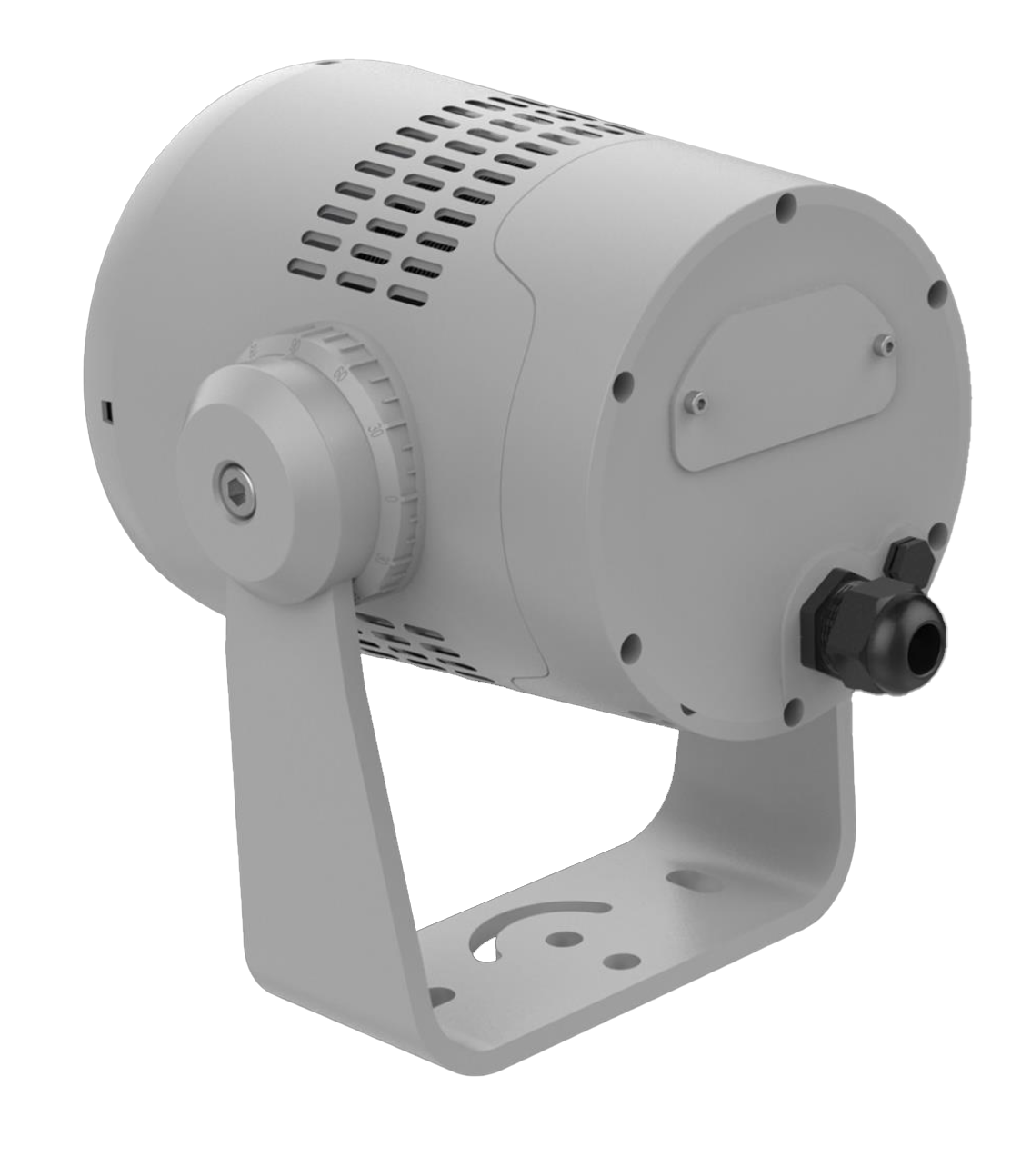

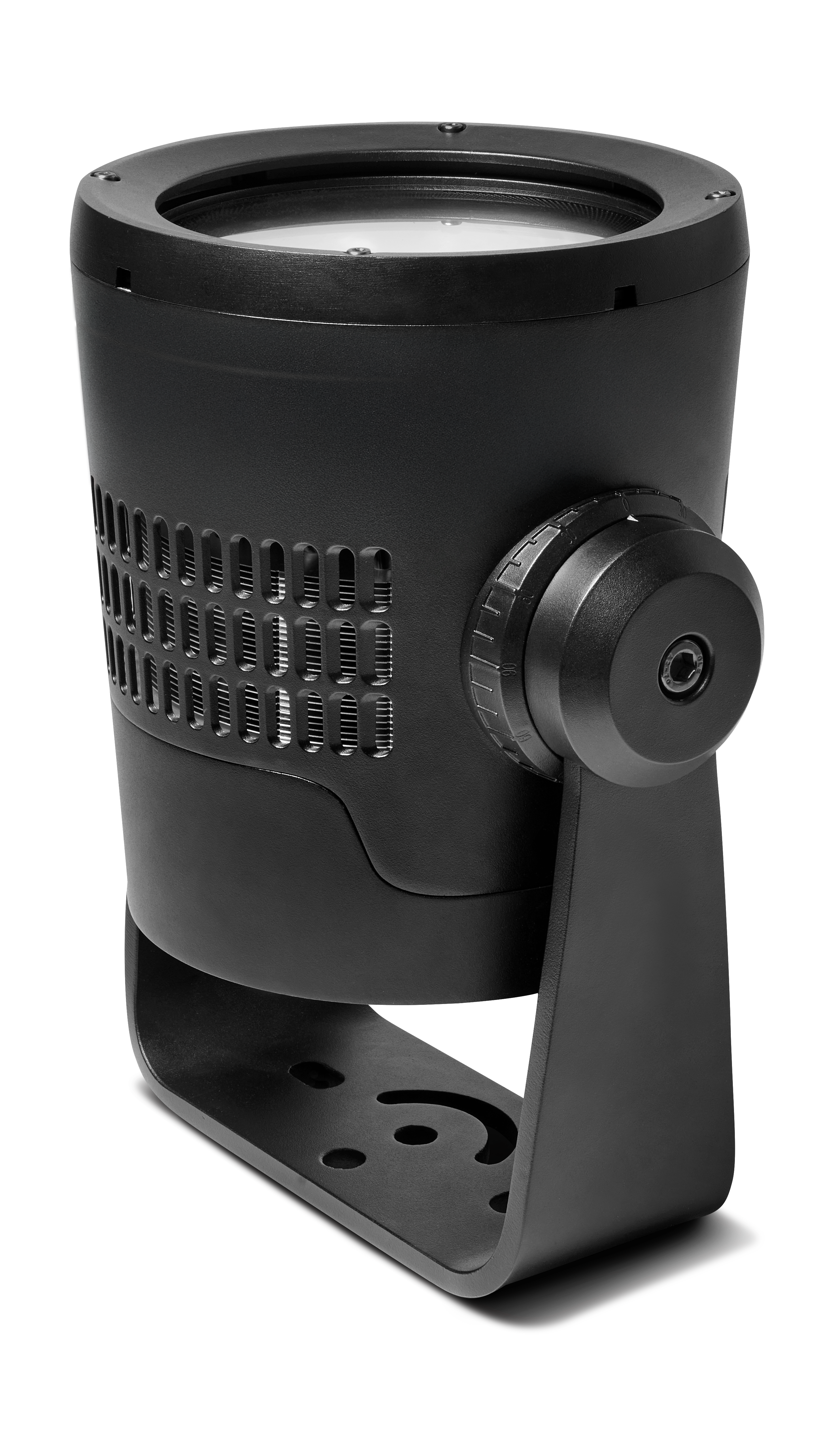

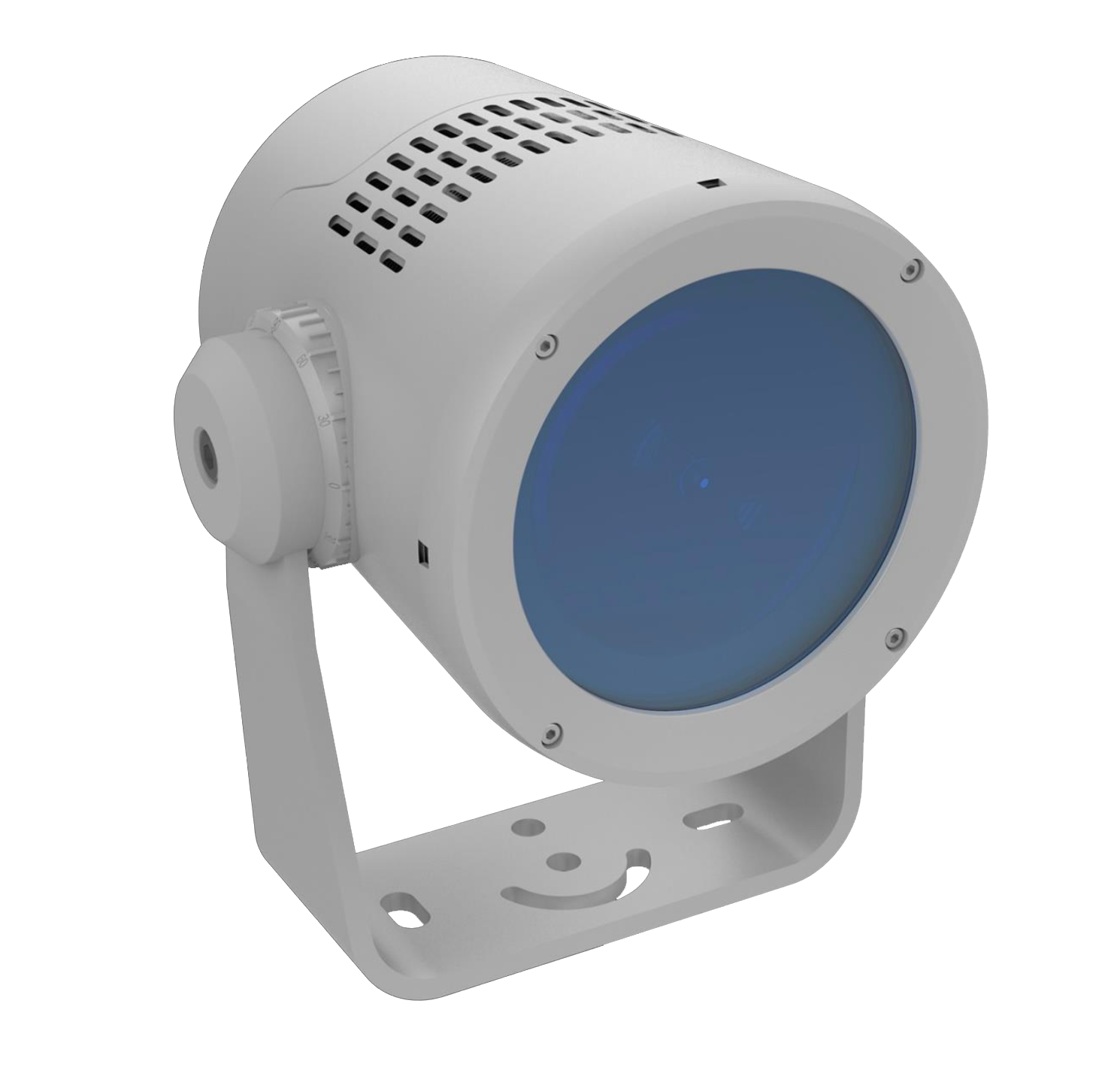

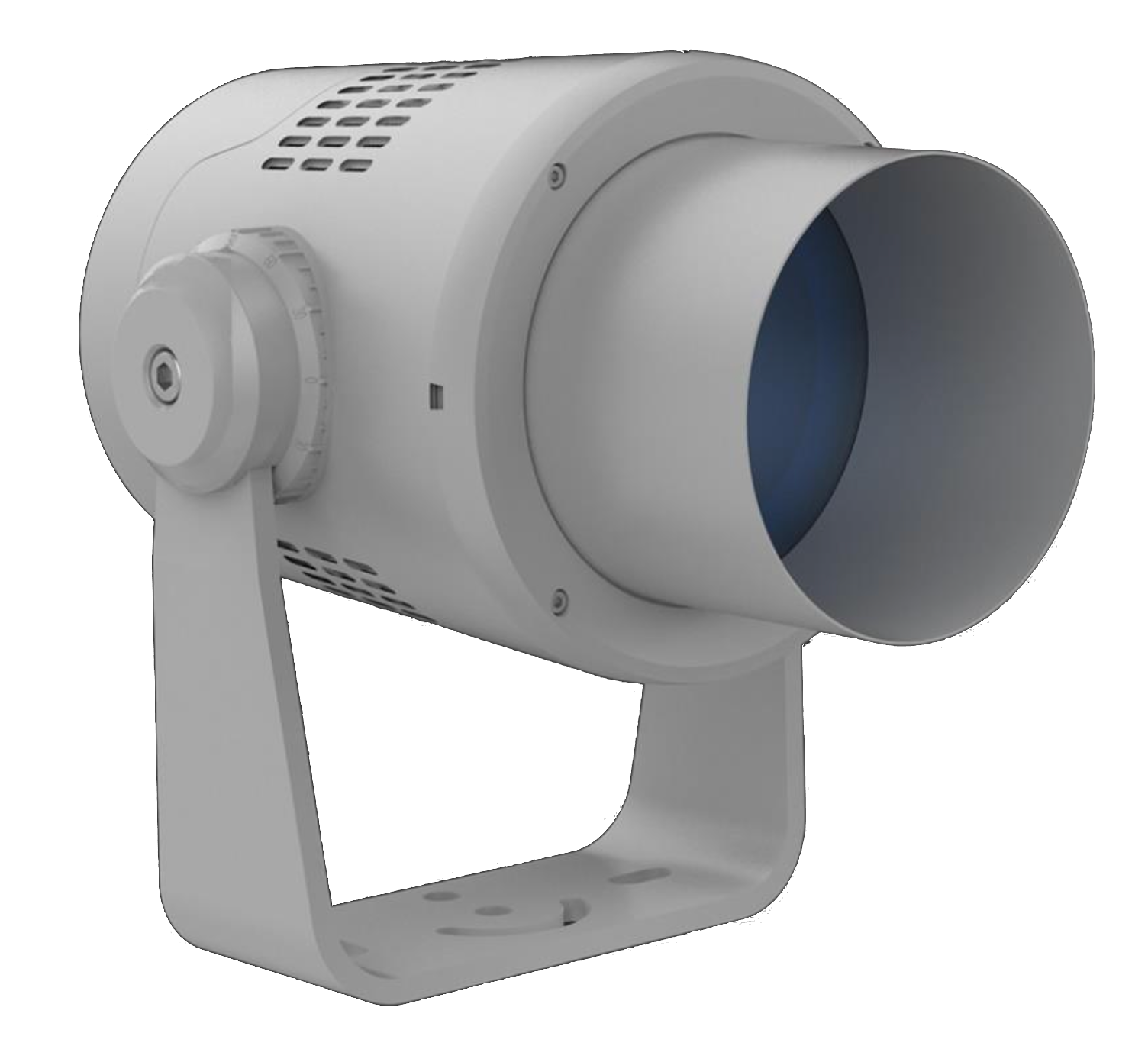

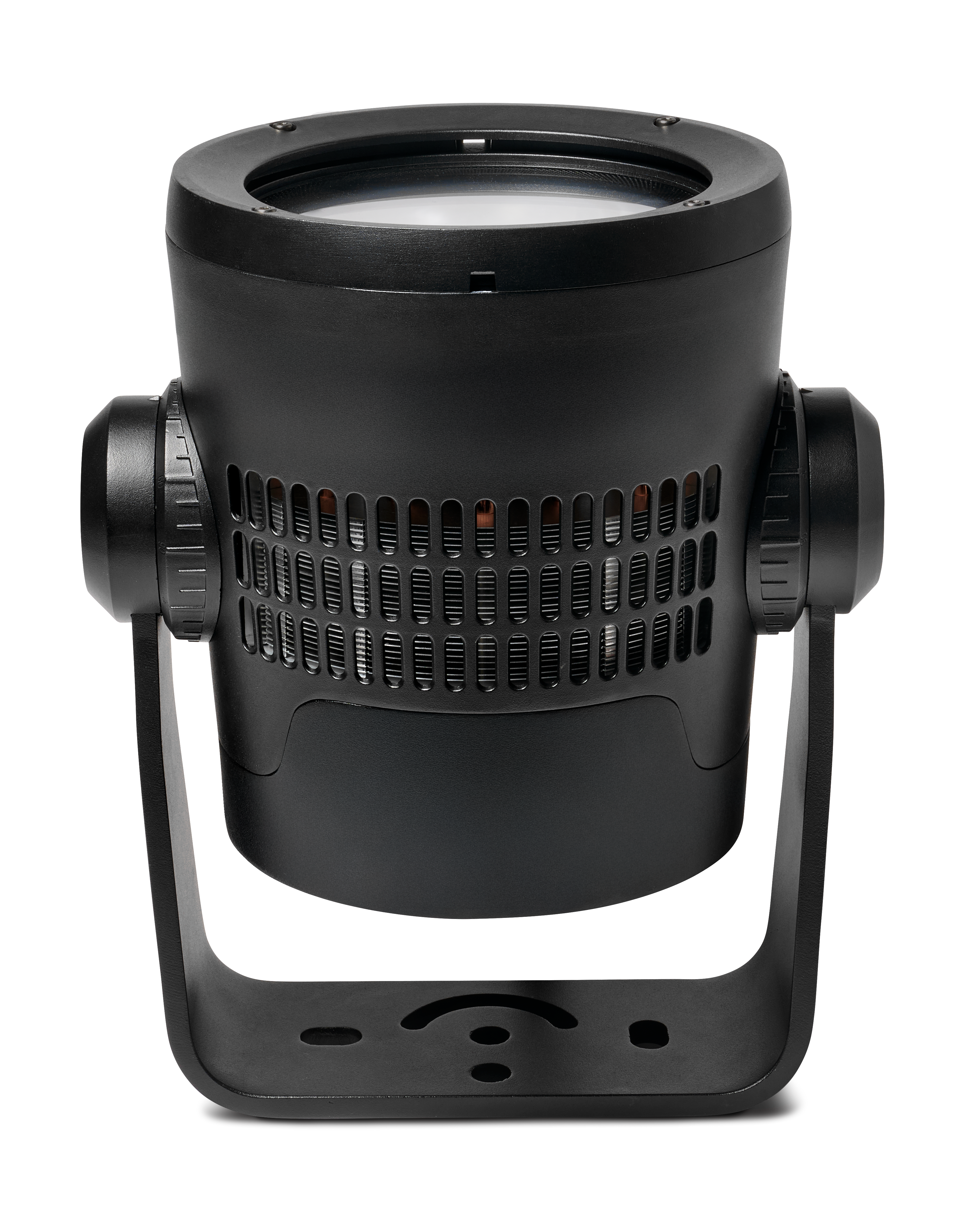

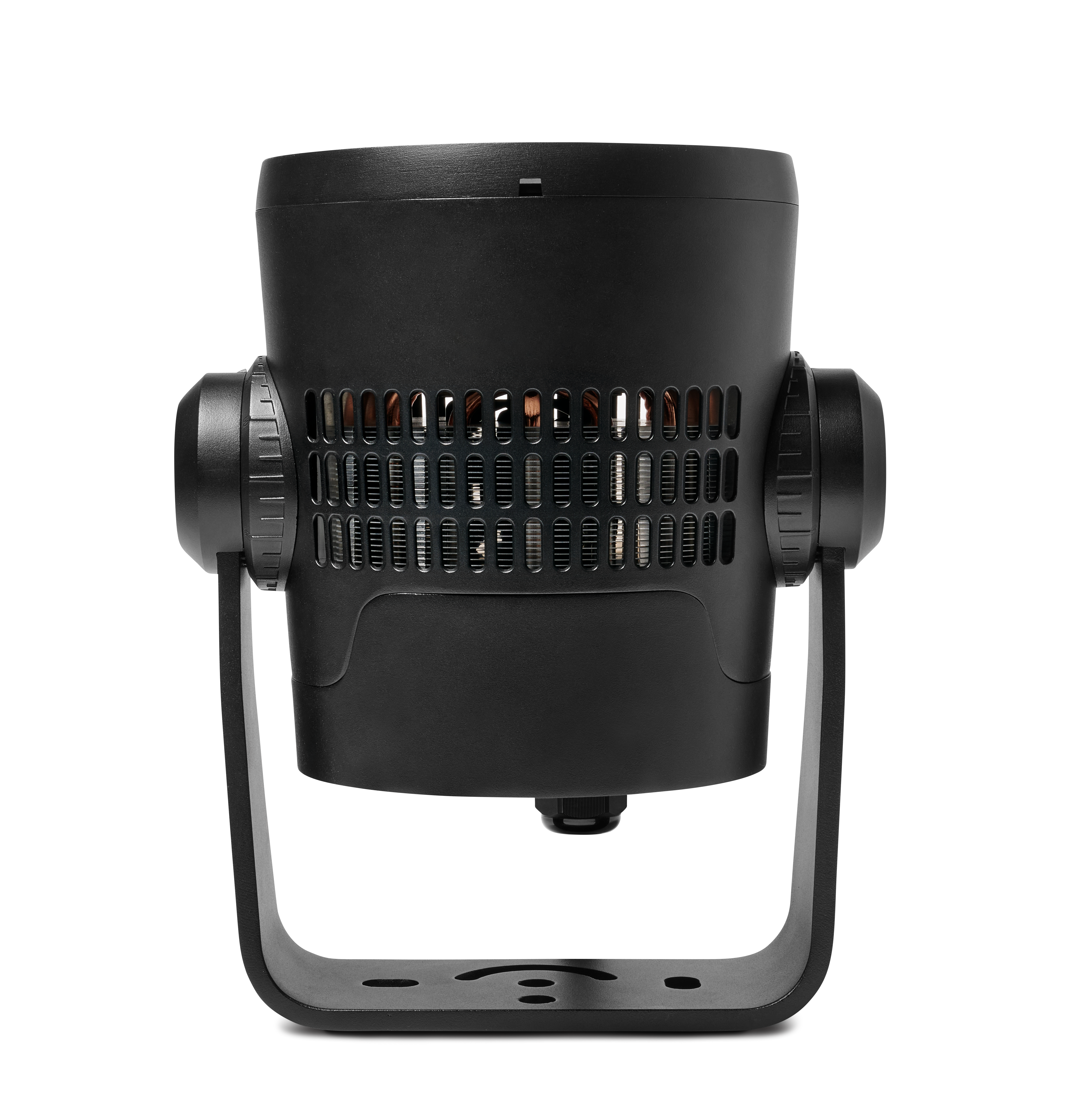

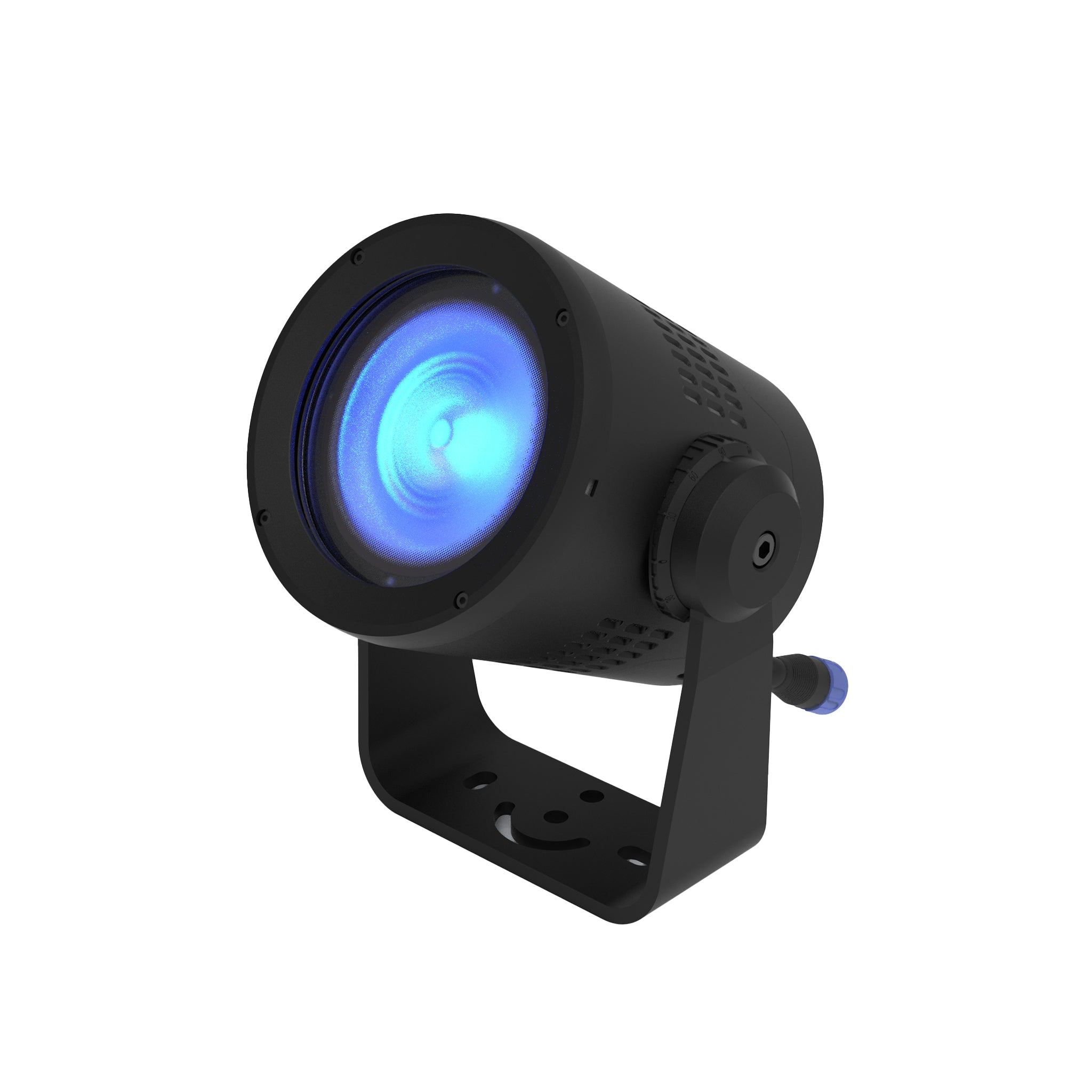

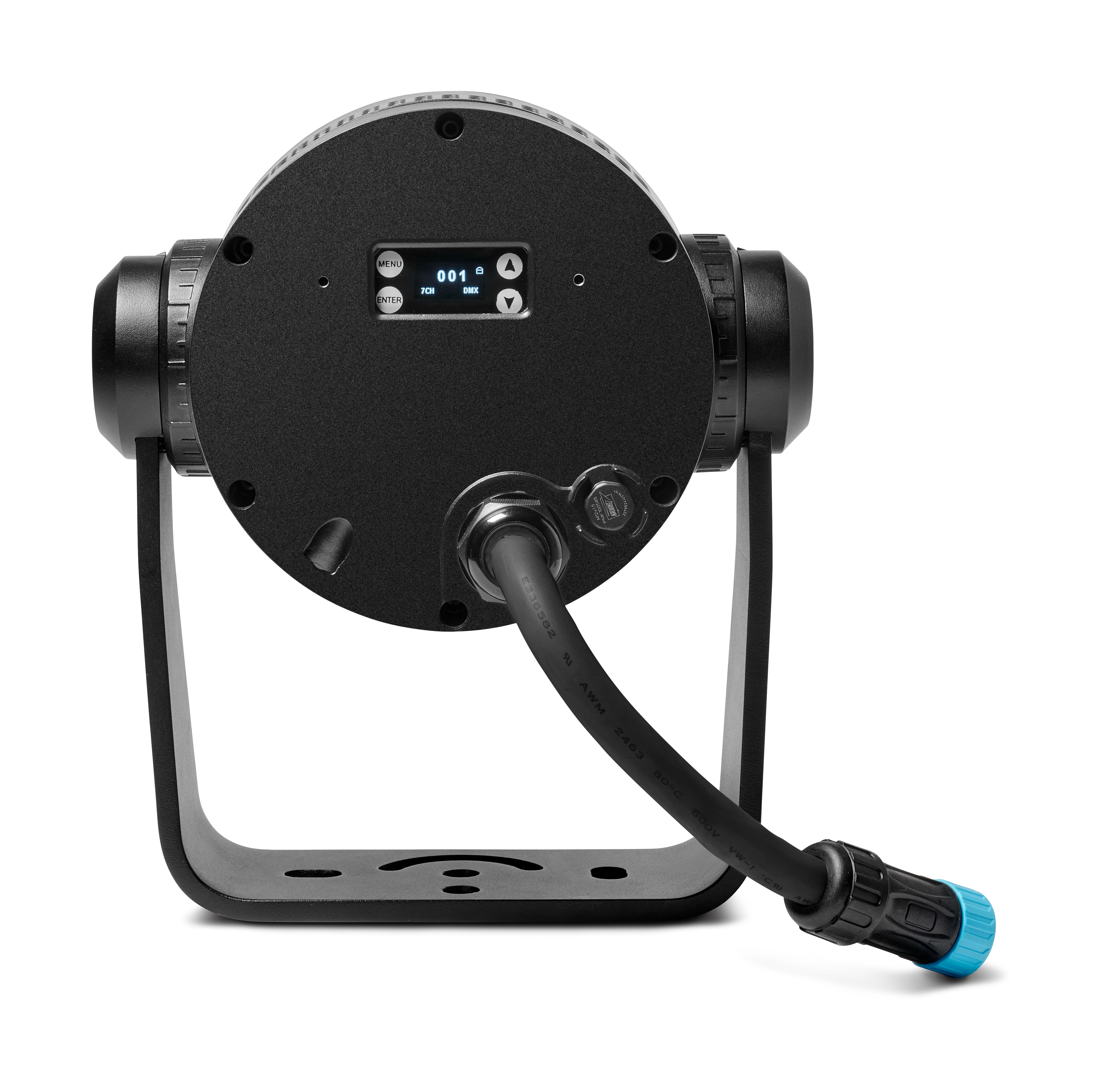

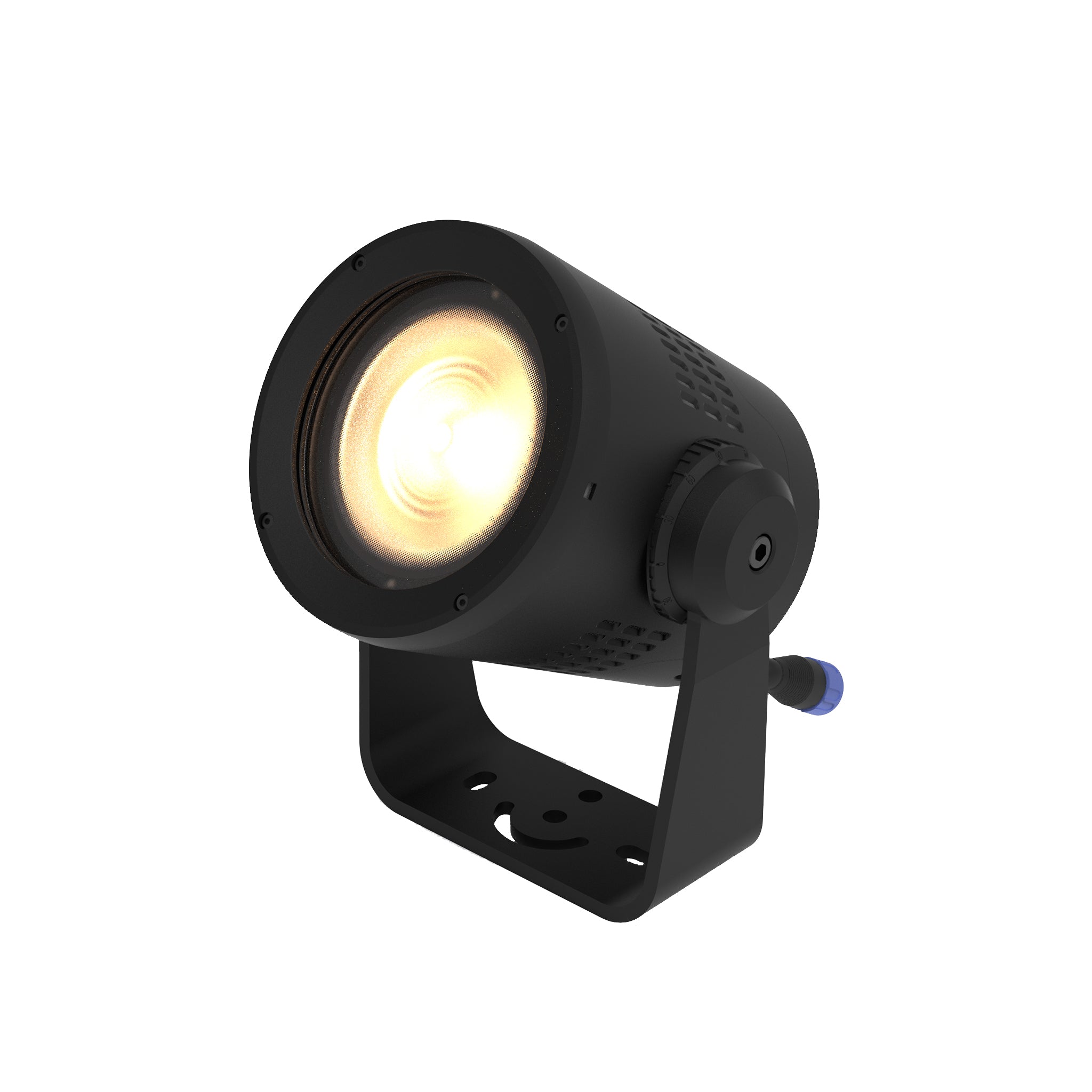

Unity S1

Lumens: 5,802
Power: 160W
TM-30: 90

Unity fundamentally rethinks what an outdoor LED floodlight can be. It uses the all-new Spectrum Five engine to give you perfect, high output / high CRI whites, dynamic white operation, and full color mixing in the same unit. It also provides a single, fully homogenized beam with no color striations or separation. Unity features Acclaim’s ColorSync Digital Color Calibration technology and Aria Wireless control built into every unit.

SKU: UNB-2##-A#RN-1

Featured Technologies

01

Spectrum Five

Five colors. Infinite possibilities. Zero compromises. Spectrum Five combines red, green, blue, amber, and lime in perfect balance to generate museum-quality whites, stunning colors, and everything in between. From high-CRI architectural white lighting to dynamic color palettes, Spectrum Five delivers the complete visible spectrum with unprecedented accuracy and output.

02

Acclaim Modular Systems

Born from decades of field experience and engineered without compromise, Acclaim Modular Systems revolutionize how professionals approach lighting projects. Every fixture is built-to-order in our Los Angeles headquarters with complete modularity at its core. Swap optics, change colors, upgrade power; all while maintaining the same housing. No more choosing between perfect specs and impossible deadlines. With AMS, every configuration ships in days, not months.

03

ColorSync

ColorSync brings laboratory-grade calibration to every fixture that leaves our facility. Embedded hardware and software work in concert to ensure that whites match perfectly across your entire installation; today, tomorrow, and years from now. Mix fixtures from different production runs with confidence. ColorSync guarantees they'll speak the same language of light.

04

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

05

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

01

Spectrum Five

Five colors. Infinite possibilities. Zero compromises. Spectrum Five combines red, green, blue, amber, and lime in perfect balance to generate museum-quality whites, stunning colors, and everything in between. From high-CRI architectural white lighting to dynamic color palettes, Spectrum Five delivers the complete visible spectrum with unprecedented accuracy and output.

02

Acclaim Modular Systems

Born from decades of field experience and engineered without compromise, Acclaim Modular Systems revolutionize how professionals approach lighting projects. Every fixture is built-to-order in our Los Angeles headquarters with complete modularity at its core. Swap optics, change colors, upgrade power; all while maintaining the same housing. No more choosing between perfect specs and impossible deadlines. With AMS, every configuration ships in days, not months.

03

ColorSync

ColorSync brings laboratory-grade calibration to every fixture that leaves our facility. Embedded hardware and software work in concert to ensure that whites match perfectly across your entire installation; today, tomorrow, and years from now. Mix fixtures from different production runs with confidence. ColorSync guarantees they'll speak the same language of light.

04

Outdoor Link System

The Outdoor Link System transforms complex outdoor installations into elegant solutions. Our IP67-rated quick-lock connectors eliminate junction boxes, reduce installation time by up to 60%, and create weatherproof connections that last decades. OLS brings plug-and-play simplicity to professional outdoor lighting.

05

Aria Wireless

Break free from the limitations of traditional control wiring. Aria brings professional-grade wireless DMX to the most demanding environments, transmitting crystal-clear signals up to 2700 feet through rain, snow, and around obstacles. IP66-rated for permanent outdoor installation, Aria-enabled fixtures communicate directly with the transmitter, creating resilient networks that adapt to your project's evolving needs.

Downloads

Filename	Document type	File type
Unity S1 Specification Sheet - July 2025	Specification Sheet	PDF
Unity Series User Guide v3-1b	User Guide	PDF
Unity S1 Revit File	Revit Files	RFA
Unity S1 IES March 2025	IES Files	ZIP
Unity S1 2D 3D Drawings	Drawings	ZIP

Tech Specs

Certifications

ETL, FCC, CE, 3G, UKCA, RoHS

Operating Voltage

100-277VAC, 50/60 Hz

Power Consumption

160W

Control

0-100% dimming via wired DMX (with RDM configuration) plus built-in Aria™ Wireless System

Lumen Maintenance

L70 100,000 hours (@ 25º C)

Optics

10° x 10º, 10° x 60°, 20º x 20º, 30° x 30°, 40º x 40º, 30° x 60°, 50° x 50°, 80° x 80°, 100° x 100°

Output

Up to 5,800 lumens, > 90 CRI

Connection

Removable power and control cord (9 feet, 2.7m with bare wire tails) or use Outdoor Link System

Emitters

Spectrum Five light engine: Red, Green, Blue, Amber, Lime plus CCT select: 1800K to 6000K

Finish

Gray standard (RAL 7047), black (RAL 9005), white (RAL 9003) or custom colors (provide RAL #)

Material

Die cast aluminum with a glass lens. Optional marine environment coating available

Mounting

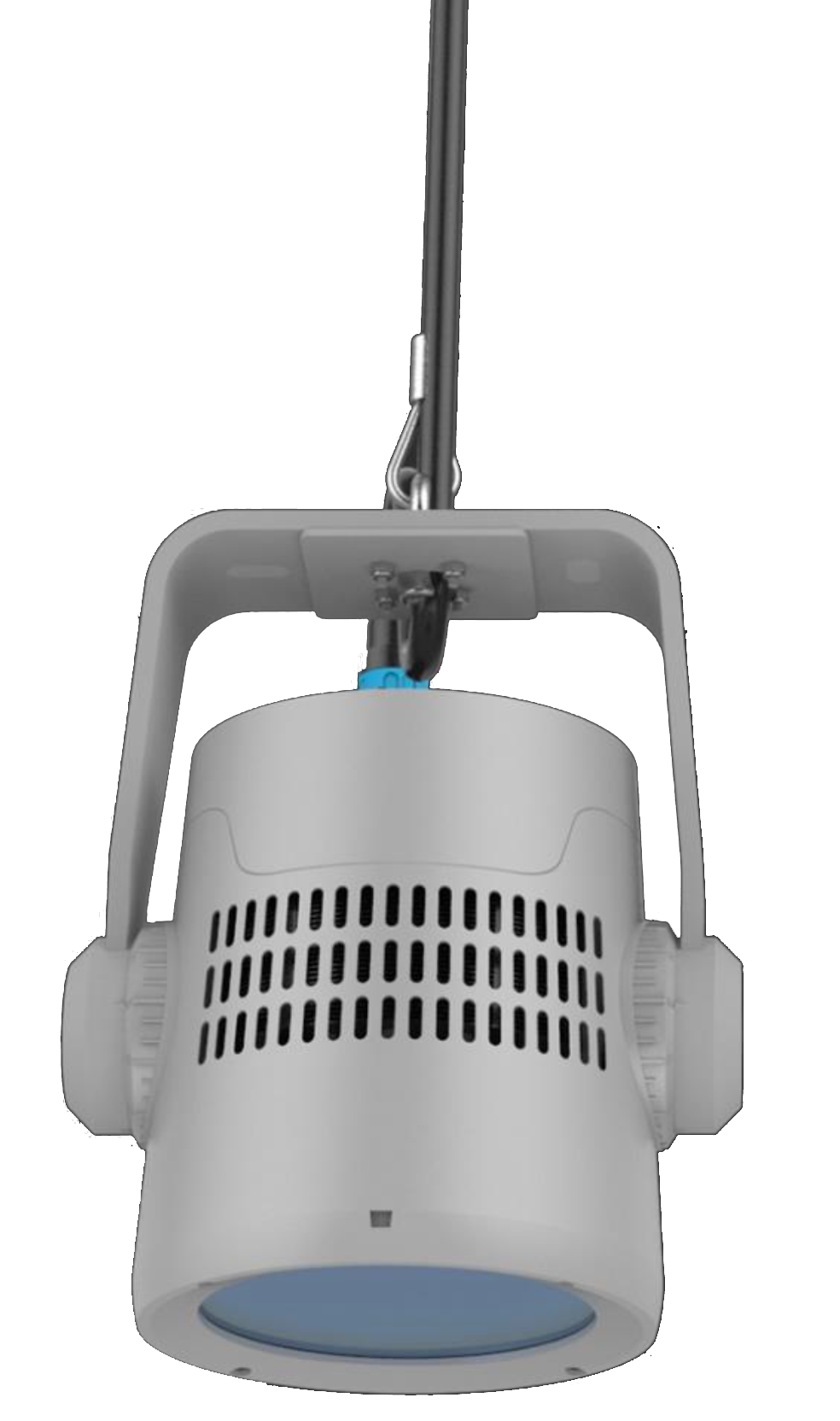

Surface mount yoke included. Tenon, pipe clamp, pendant and cable mount options available

Weight

19.4 lbs (8.8 kg)

Ambient Temperature Range

-40° F to 125° F (-40° C to 51° C)

Impact Protection

IK07, protection against 2 joule impact (40cm distance)

Ingress Protection

IP66, wet location

Vibration Protection

ANSI C136.31, 3G-rated for high vibration and bridge applications

Maximum Fixtures In Series

32 via wired DMX. Power local to each fixture or use Acclaim's Outdoor Link System - see page 9
